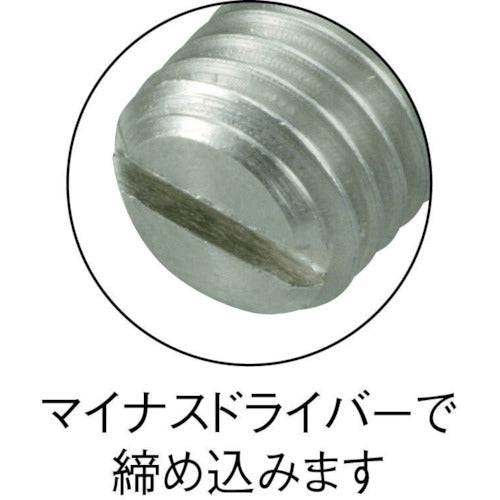

Catalog number: BSU6 Features: ● A spring is built into the screw body, and the ball is stroked and positioned by pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 9.0 to 13.0 ● Screw dimensions: M6 x 1.00 ● Stroke (mm): 1.0 ● Total length (mm): 14 ● Pole diameter (mm): 3.5 ● Heat resistance temperature (℃): 180 Materials/Finish: ● Body: Stainless steel (SUS303) ● Ball: Stainless steel (SUS420)
