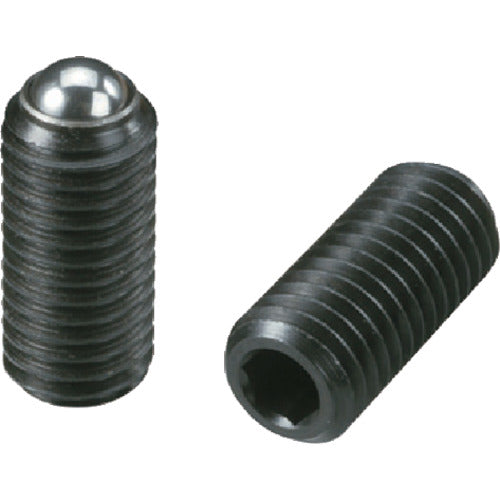

kipp hexagon socket ball plunger thread diameter M10 x 1.5 BST10A 1 piece

Catalog number: BST10A Features: ● A spring is built into the screw body, and the ball is stroked and positioned by the pressure. Specifications: ● Load (N): 20.0-35.0 ● Stroke (mm): 2.0 ● Pole diameter (mm): 6.0 ● Screw diameter: M10 x 1.5 ● Body dimensions (mm) length: 23 Material/Finish: ● Body: SUM22L Black dyed ● Coil spring: SWPA ● Ball: SUJ2 HRC56-60 Note: ● Shipping fee to Hokkaido and Okinawa is 1,500 yen
