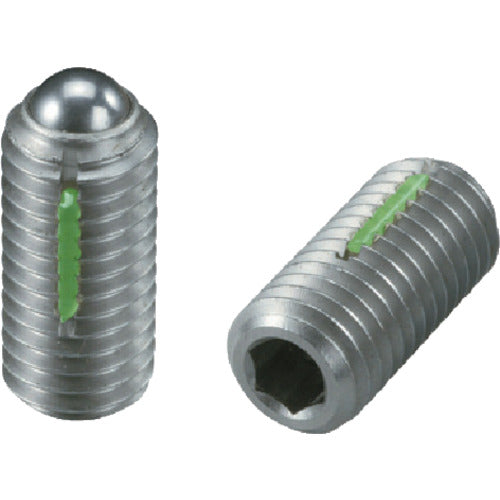

kipp hexagonal socket ball plunger thread diameter M4 x 0.70 LBSU4A 1 piece
kipp hexagonal socket ball plunger thread diameter M4 x 0.70 LBSU4A 1 piece
Regular price
¥961
Regular price
Sale price
¥961
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: LBSU4A Features: ● A spring is built into the screw body, and the ball is stroked and positioned by pressure. ● The long lock prevents loosening. Specifications: ● Load (N): 4.0-10.0 ● Stroke (mm): 0.8 ● Pole diameter (mm): 2.5 ● Screw diameter: M4 x 0.70 ● Body dimensions (mm) length: 10 Materials/Finish: ● Body: SUS303 ● Coil spring: SUS302WPA ● Ball: SUS420 HRC55 ● Long lock: Polyamide Notes: ● Shipping fee to Hokkaido and Okinawa is 1,500 yen
