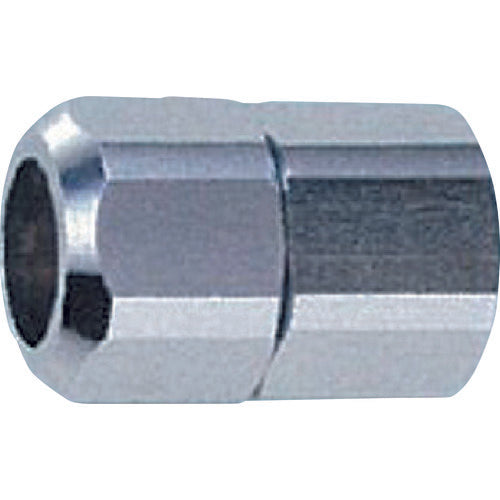

KISS Easy Joint Metal Fitting Female SKM-13168 1 pc

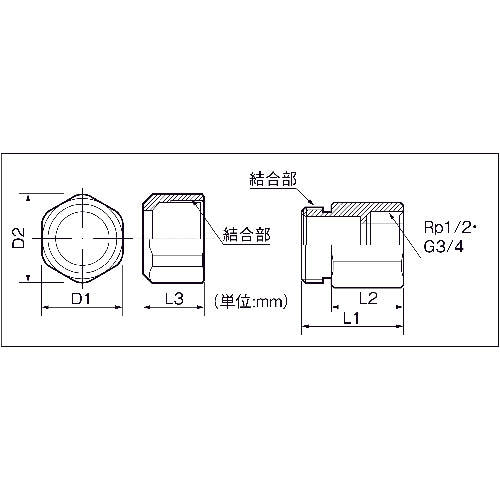

Catalog number: SKM-13168 Features: ● No need for a flange tool. ● Prevents electrolytic corrosion. ● Safe with a "three-point seal structure". Applications: ● For easy flex Specifications: ● Screw size: Rp1/2 ● Total length (mm): 42.7 ● Hexagonal side (mm): 26 ● Screw: Rp1/2 ● Flex diameter: For Φ16.8 ● L1 (mm): 32 ● L2 (mm): 22.7 ● L3 (mm): 20 ● Operating temperature range (℃): 100 ● Material: C3604BD ● D2 (mm): 28 ● D1 (mm): 26 ● Metal fittings for easy flex, female Caution: ● Do not connect to flexible pipes of other companies.
