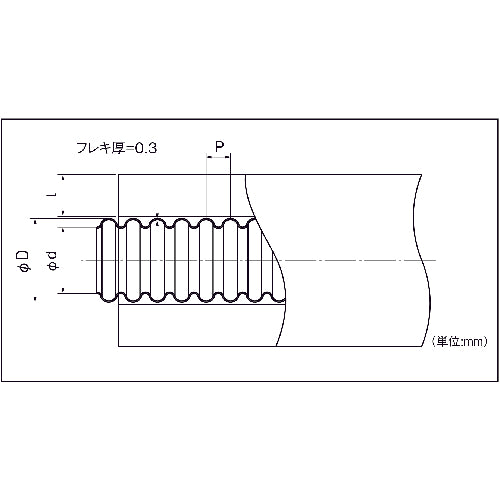

Catalog number: SBFS-16810 Features: ● A coated flex pipe using highly weather-resistant coating material. ● The use of a dedicated easy-to-joint fitting eliminates the need for a flange forming process. Specifications: ● Pipe outer diameter (mm): 16.8 ● Total length (mm): 10 ● Thickness (mm): 10 ● Length (m): 10 ● L (m): 10 ● Minimum bending radius (mm): 40 ● Coating outer diameter (mm): 38.5 ● Φd (mm): 13.8 ● P (mm): 5.0 ● Length (m): 10 ● Hose length (m): 10 ● Operating temperature range (℃): 100 ● Coating thickness: 10mm ● For indoor and outdoor use ● Heat resistance temperature of the inner layer of the thermal insulation material: 120℃ Material/Finish: ● Stainless steel (SUS316L) Caution: ● Do not connect to other companies' fittings or flexible pipes.
