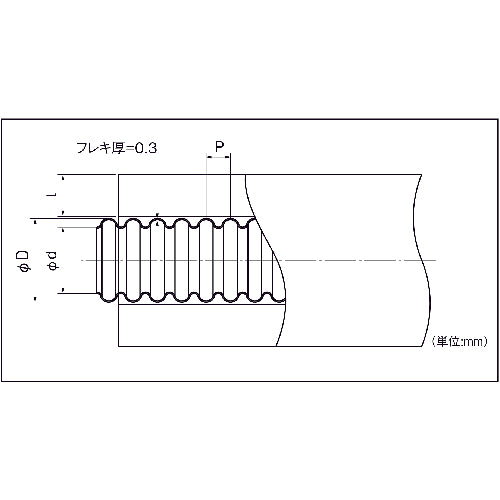

Catalog number: SBFS-2010 Features: ● A coated flex pipe using highly weather-resistant coating material. ● The use of a dedicated easy-to-joint fitting eliminates the need for a flange forming process. Specifications: ● Pipe outer diameter (mm): 20.0 ● Total length (mm): 10 ● Thickness (mm): 10 ● Length (m): 10 ● L (m): 10 ● Minimum bending radius (mm): 50 ● Coating outer diameter (mm): 44 ● Φd (mm): 16.4 ● P (mm): 5.8 ● Length (m): 10 ● Hose length (m): 10 ● Operating temperature range (℃): 100 ● Material (stainless steel): 304 ● Coating thickness: 10mm ● For indoor and outdoor use ● Heat-resistant temperature of the inner layer of the thermal insulation material: 120℃ Material/Finish: ● Stainless steel (SUS316L) Caution: ● Do not connect to joints or flexible pipes from other companies.
