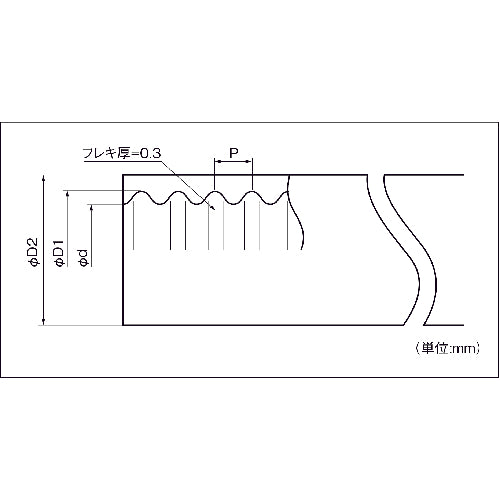

Catalog number: KISS-UVCUT-RF1610-M Features: ● Useful for piping in visible locations. ● Easy to bend by hand. ● Fewer parts means less cost. ● The covering material is weather resistant, so it can be used both indoors and outdoors. Specifications: ● Pipe outer diameter (mm): 16 ● Total length (mm): 10 ● Thickness (mm): 2 ● Length (m): 10 ● L (m): 10 ● Minimum bending radius (mm): 40 ● Coating outer diameter (mm): 20 ● Color: Milky white ● Nominal diameter (mm): 16 ● Coating thickness (mm): 2.0 ● Φd: 13.0mm ● P (mm): 5.0 ● Coating resin material: PVC-based TPE UV-cut specification ● Length: 10m ● Contains mold inhibitor ● Operating temperature range (℃): 80 ● Hose length (m): 10 ● Material (stainless steel): 304 ● Coating thickness: 2.0mm ● For indoor and outdoor use ● Minimum bending radius: 40mm ● Contains mold inhibitor (milky white) Material/Finish: ● Stainless steel (SUS304) Note: ● Please assume that the heat retention is equivalent to that of ordinary flexible pipes.
