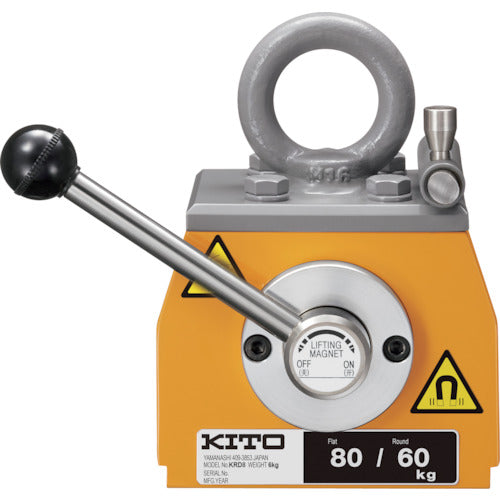

KITO KITO Super Mag Flat steel: 80kg / Round steel: 60kg KRD8 1 unit

Catalog number: KRD8 Features: ●Permanent magnet type that is safe even during power outages. ●Four magnetic poles securely attract and hold loads. ●Easy to operate and remove loads. ●Safe design that does not attract even small clips when the switch is OFF. ●For both flat steel and round steel. Applications: ●For lifting and moving workpieces such as steel plates, shaped steel, and round steel using magnetic force. Specifications: ●Width (mm): 112 ●Depth (mm): 96.4 ●Height (mm): 155 ●Inner diameter of lifting ring (mm): 35 ●Applicable steel plate (mm): 25 or more ●Applicable round steel (mm): φ80-300 ●Maximum load capacity for round steel (kg): 60 (φ120) ●Maximum load capacity for steel plate (kg): 80 Caution: ●Sufficient magnetic force may not be obtained depending on the shape, material, thickness, surface roughness, gap, and usage method of the material.
