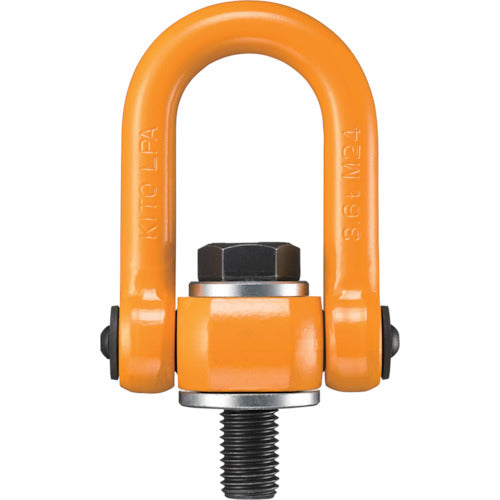

KITO KITO Lifting Point, Basic Load Capacity 4.6t LPB04636, 1 pc

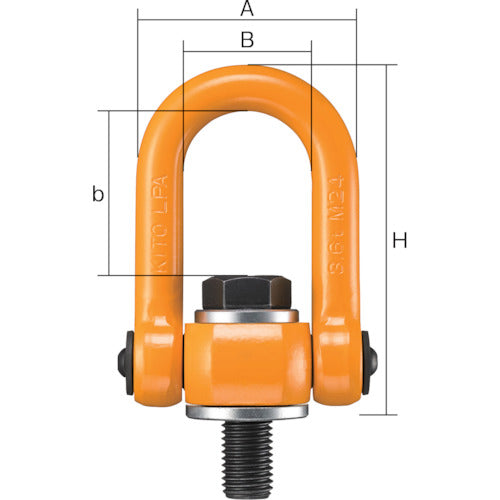

Catalog number: LPB04636 Features: ●360° rotation, 180° movement, shackle moves freely in the load direction, improving work safety and efficiency. ●The working load is up to three times higher than that of a JIS eye bolt of the same bolt diameter. ●A wide variety of options available for bolt diameters from M8 to M64. ●You can choose from three different working loads with one bolt size. (M24 to M48) ●Compatible with tasks that are dangerous with eye bolts, such as horizontal lifting, diagonal lifting, and lifting. Applications: ●Transporting, inverting, and lifting heavy objects such as molds and industrial machinery. Specifications: ●Basic working load (t): 4.6 ●Bolt size: M36 ●Dimensions (mm) A: 102 ●Dimensions (mm) B: 58 ●Dimensions (mm) C: 22 ●Dimensions (mm) H: 157 ●Dimensions (mm) b: 68 Material/Finish: ●SCM435 (JIS G 4053)
