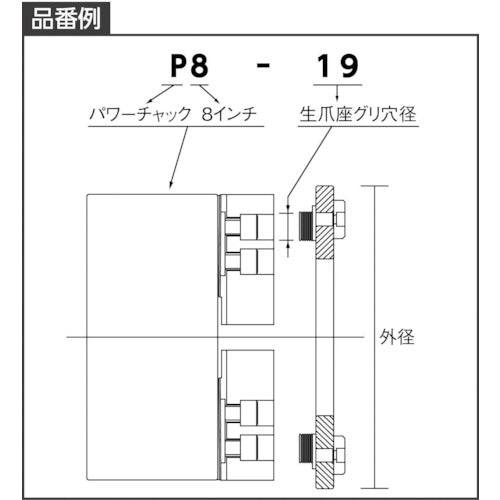

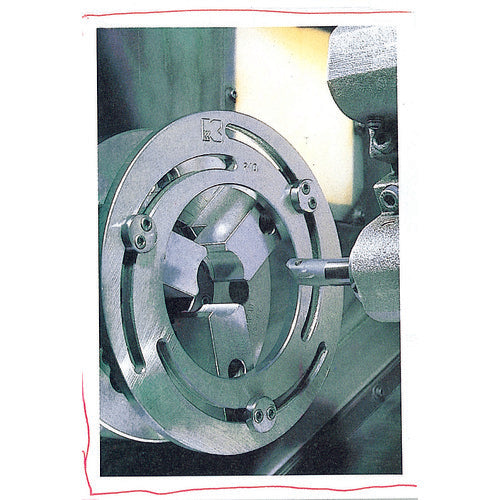

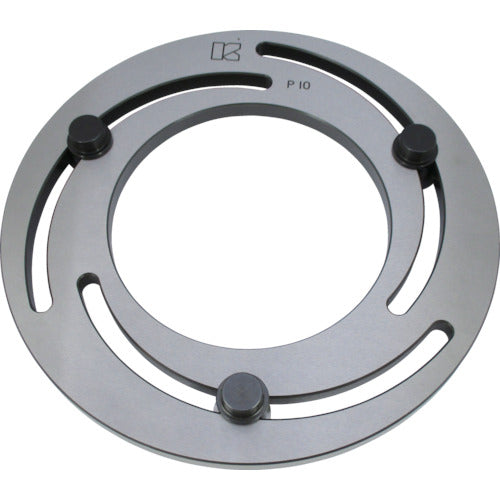

Catalog number: P10-20 Features: ●The setup for forming the raw jaws takes less than one minute. Processing can also be completed in a short time. Even inexperienced people can center with one touch. The core runout accuracy is within 10 microns. ●It does not interfere with permanent tooling, and caliper measurements can be made with the jaws attached. ●To use, simply open the chuck, insert three Chuck Mate locking pins into the raw jaw mounting holes, and tighten the chuck. For tension chucks, the operation is reversed. Applications: ●As a holder for forming raw jaws when chucking work. Specifications: ●Applicable chuck outer diameter (inch): 10 ●Pin diameter (mm): 19.5 ●Outer diameter (mm): 260 ●Maximum processing dimension (mm): 148
