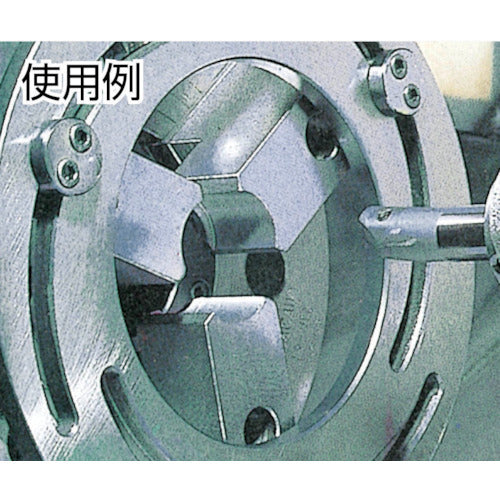

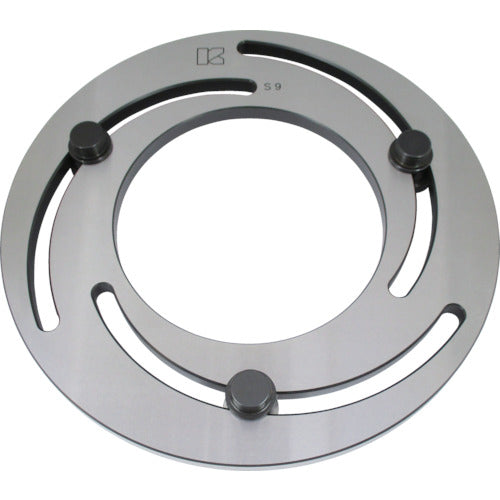

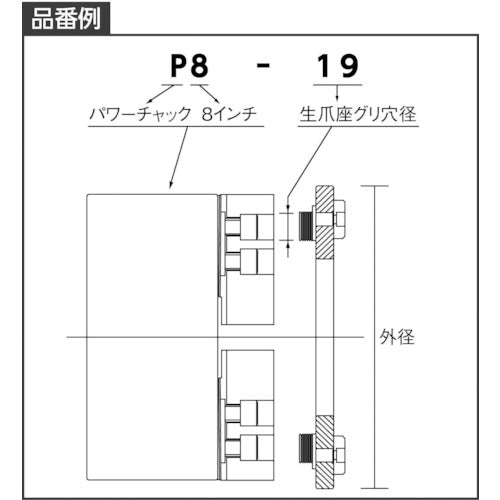

Catalog number: S9-19 Features: ●The setup for forming the raw jaws takes less than one minute. Processing can also be completed in a short time. Even inexperienced people can center with one touch. The core runout accuracy is within 10 microns. ●It does not interfere with permanent tooling, and caliper measurements can be made with the jaws attached. ●To use, simply open the chuck, insert three Chuck Mate locking pins into the raw jaw mounting holes, and tighten the chuck. For tension chucks, the operation is reversed. Applications: ●As a holder for forming raw jaws when chucking work. Specifications: ●Compatible chuck outer diameter (inch): 9 ●Pin diameter (mm): 18.5 ●Outer diameter (mm): 270 ●Maximum processing dimension (mm): 148 ●Type: For scroll chucks
