KNIPEX Solar Power Tool Set MC4 V01 9791-04V01 1 S

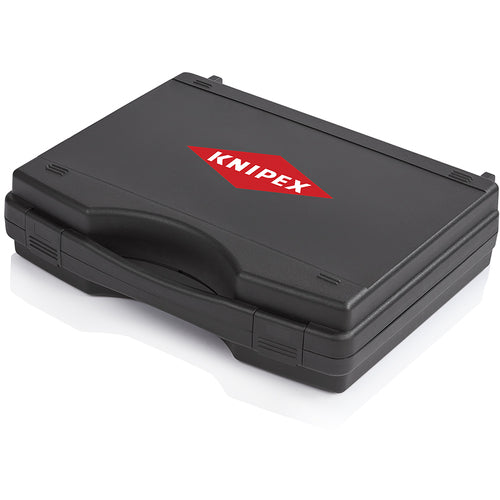

Catalogue number: 9791-04V01 Features: ● Crimping dies (97 49 66), locator (97 49 66 1) and assembly tool set (97 49 66 2) for solar connectors MC4 (multi-contact) 2.5 to 6.0 mm (square). ● Precision stripping pliers (1212 11): allows stripping 1.5 / 2.5 / 4.0 / 6.0 mm (square). ● Crimping pressure of the crimping system pliers is precisely set (calibrated) before leaving the factory. ● Cable cutter for copper cables up to 15 mm diameter. Uses: ● For wiring solar power generation systems Specifications: ● Case dimensions (mm) width: 345 ● Case dimensions (mm) depth: 280 ● Case dimensions (mm) height: 80 ● Set contents (pieces): 6 ● Case color: black ● Cable cutter: Compatible with copper cables up to φ15 mm, insulated ● Crimping range: 2.5 to 6.0 mm (squared) ● Stripping range: 1.5 / 2.5 / 4.0 / 6.0 mm (squared) ● Solar power tool set Material / finish: ● Case / installation tool: Plastic Set contents / accessories: ● Precision insulation stripper (12 12 11) x 1, cable nippers (95 16 165) x 1, crimping system pliers (97 43 200A) x 1, solar cable die (97 49 66) x 1, locator (97 49 66 1) x 1, installation tool set of 2 (97 49 66 2) x 1
