KOD Mega drainage sloper MGL-500 1 piece
KOD Mega drainage sloper MGL-500 1 piece
Regular price
¥6,133
Regular price
Sale price
¥6,133
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

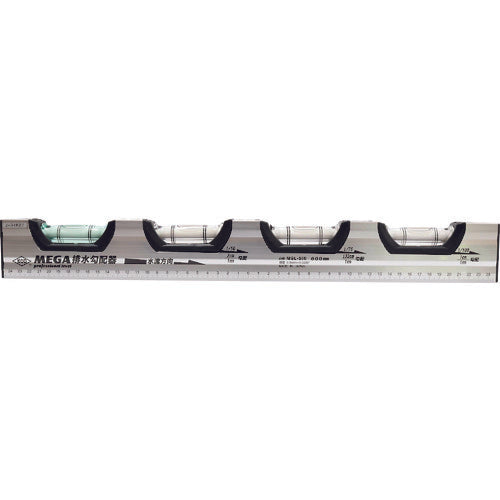

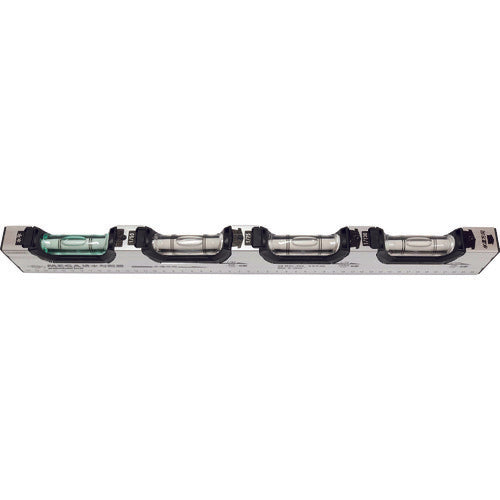

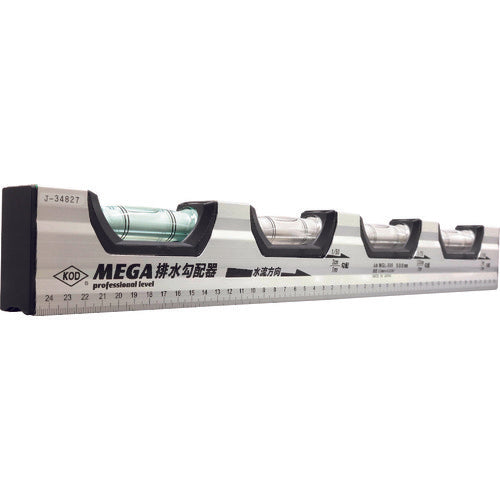

Catalogue number: MGL-500 Features: ● Bubble tubes with different set gradients. ● Equipped with extra-large bubble tubes for excellent visibility. ● Equipped with extra-large bubble tubes for excellent visibility and bubbles separated by set gradient, it has excellent work efficiency and accuracy. Applications: ● For measuring drainage pipe gradients. ● For sewerage construction. ● For horizontal measurement. Specifications: ● Length (mm): 500 ● Height (mm): 60 ● Thickness (mm): 28 ● Sensitivity: 0.5mm/m = 0.0286° ● Accuracy: Within ±1.5mm/m = ±0.0859° ● Set gradient: Horizontal, 1/50, 1/75, 1/100 ● Scale specifications: With scale graduations Material/Finish: ● Body: Aluminum/ABS resin ● Bubble tube: Acrylic resin
