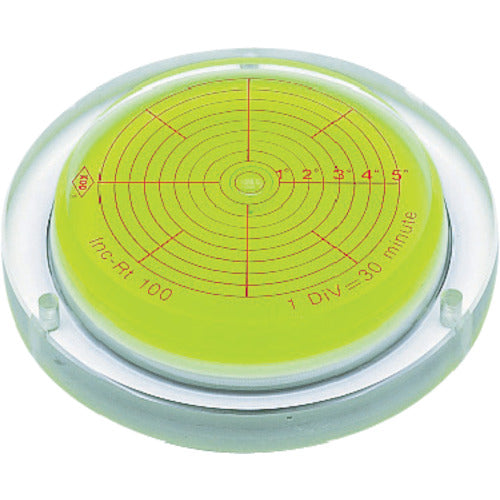

KOD INC-RT125 Round Base Type Ivel Level with Angle Gauge and Mounting Holes 1 pc

Catalogue number: INC-RT125 Features: ● An angle meter that can be attached to machines and equipment. ● Excellent accuracy due to machined acrylic. Applications: ● For horizontal and tilt measurements. ● For incorporation or mounting into machines, equipment, etc. Specifications: ● Height (mm): 23 ● Magnet: None ● Precision: 0.15mm/m = 0.0083° ● Sensitivity: 10'/2mm ● Diameter (mm): 125 ● Tilt measurement range (°): 0 to ±3 ● Tilt measurement range 0° to ±3° ● Bubble diameter 92mm ● Mounting hole diameter 4mm (3 locations) Material/Finish: ● Body: Acrylic resin (PMMA) ● Bubble tube: Acrylic resin (PMMA)
