KOGI Air Wiper 812 812 1 piece

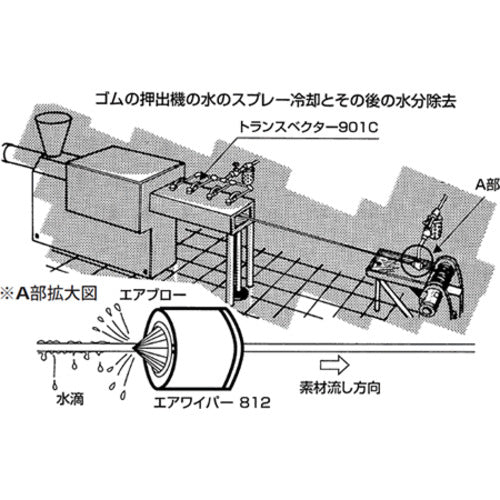

Catalog number: 812 Features: * Nozzle for draining. * Draining material is passed through the center of the hollow nozzle. * Blow air is sprayed in a cone shape toward the center of the hollow nozzle, allowing for continuous 360° draining. * The cross-sectional shape (round or square) of the draining material is not important. * Blow strength can be adjusted. (Scale adjustment type) Applications: * Draining and blowing resin, rubber molded products, steel bars, and pipes after cleaning and cooling. Specifications: ●Nozzle mounting port: Rc1/4 ●Nozzle width (mm): φ75 ●Nozzle length (mm): 50 ●Nozzle diameter (mm): 35 ●Total length (mm): 50 ●Air pressure used (MPa): 0.29-0.69 ●Outer diameter (mm): 75 ●Minimum diameter (mm): 35 ●Air consumption (NL/min) (at scale 1): 345-697 ●Applicable fluid: Compressed air (compressor air) Material/Finish: ●Aluminum Caution: ●Use clean compressed air.
