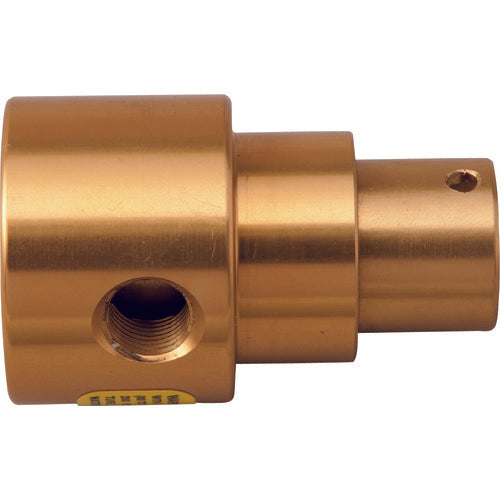

KOGI Air Amplifier Nozzle Transvector Jet 901A 901A 1 piece

Catalog number: 901A Features: ● Attracts and sucks in surrounding air, allowing for large volume air blowing. ● Can blow 2 to 20 times the volume of air depending on the model. ● Wide-angle nozzle makes it good for blowing over a wide area. ● Capacity can be adjusted by increasing or decreasing the number of built-in gaskets. (909A has adjustable scale) Applications: ●Blow: chips, cleaning, draining ●Suction: chip collection, hole cleaning, exhaust, smoke extraction ●Transport: foam material, paper waste, food materials, pharmaceuticals, powder ●Draining: various rod shapes (passes through the inner diameter) ●Suction: robot hand ●Suction + blow: chemical spray Specifications: ●Nozzle mounting port: NPT-1/8 ●Nozzle length (mm): 53.8 ●Nozzle aperture (mm): 19 ●Total length (mm): 53.8 ●Operating air pressure (MPa): 0.29 to 0.69 ●Air consumption (NL/min): 126 to 254 ●Outer diameter (mm): Maximum Φ33.8 ●Minimum aperture (mm): φ10 ●Maximum operating pressure (MPa): 1 ●Applicable fluid: compressed air (compressor air) ●Minimum aperture 10mm Material/Finish: ●Aluminum Caution: ●Use clean compressed air.
