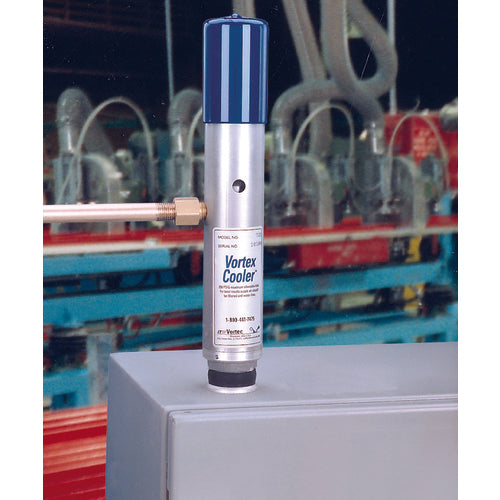

KOGI Panel Guard Cooler 760J 760J 1 piece

Catalogue number: 760J Features: ●Does not use refrigerants such as Freon. ●No moving parts, so almost no maintenance is required. ●Compact and easy to install. ●Air that has undergone heat exchange inside the panel is automatically vented. ●Maximum ambient temperature for installation is 80°C. ●Can be used in dusty environments. Applications: ●To prevent problems with control panels and electronic devices. ●For cooling control panels, industrial cameras, and sensor boxes. Specifications: ●Air consumption (L/min): 105-224 ●Air pressure used (MPa): 0.27-0.69 ●Compressed air supply port: NPT-1/8 ●Total length (mm): 181 ●Connection port size: NPT-1/8 ●Connection diameter: NPT-1/8 ●Maximum operating pressure (MPa): 1 ●Operating pressure (MPa): 0.27-0.69 ●Suitable fluid: Compressed air (compressor air) ●Type: For indoor use ●Applicable fluid: Compressed air (air) ●Air consumption (NL/min) 105-224: 0.27MPa-069MPa ●Cooling capacity (W) 54-115: 0.27MPa-069MPa ●Continuous cold air discharge type ●Comes with vinyl hose for internal piping ●Air pressure used: 0.27-0.69MPa Material/Finish: ●Body: Aluminum Set contents/Accessories: ●Vinyl hose ●Vinyl hose fixing device Caution: ●Use clean, dry compressed air.
