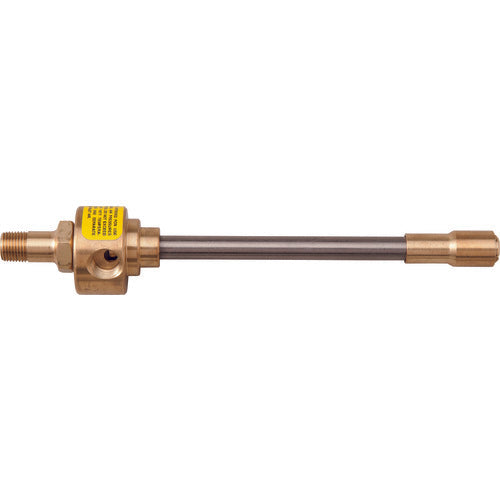

KOGI Vortex Tube 106J-4H 106J-4H 1 pc

Catalogue number: 106J-4H Features: ●Can create -60°C cold air just by supplying compressed air. ●Pinpoint cooling is possible. ●Without a moving part and a simple structure, the interior is easy to clean. ●Due to the simple structure, there are almost no breakdowns. ●Standard product. Applications: ●For cooling cutting edges during machining and for cooling products. ●For cooling cameras and sensors. Specifications: ●Air consumption (L/min): 53-112 ●Compressed air supply port: NPT-1/8 ●Total length (mm): 160.3 ●Connection diameter: NPT-1/8 ●Nozzle diameter: 1/8 ●Connection diameter: NPT-1/8 ●Maximum operating pressure (MPa): 1 ●Operating pressure (MPa): 0.27-0.69 ●Type: Standard ●Cooling capacity (W) 32-67: 0.27MPa-069MPa (when cold air ratio is 60%) Material/Finish: ●Body: Stainless steel, brass Caution: ●Use clean, dry compressed air.
