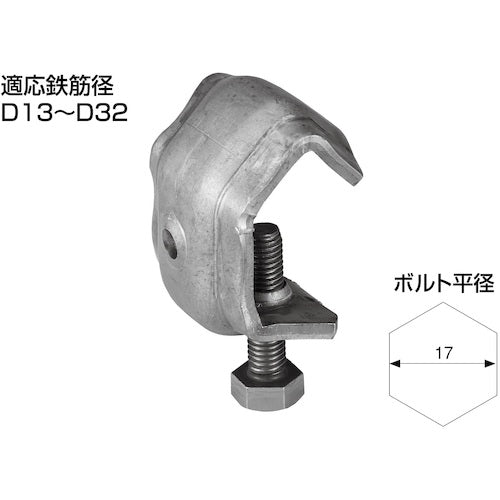

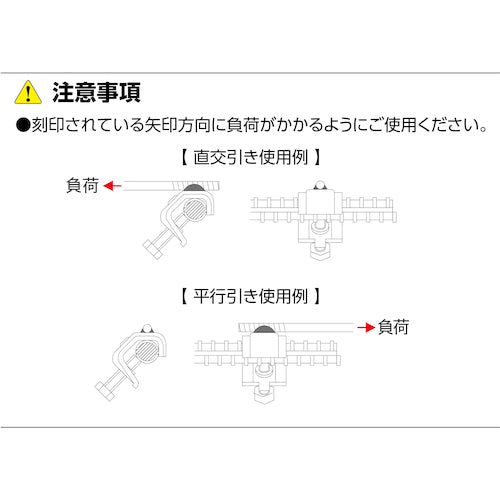

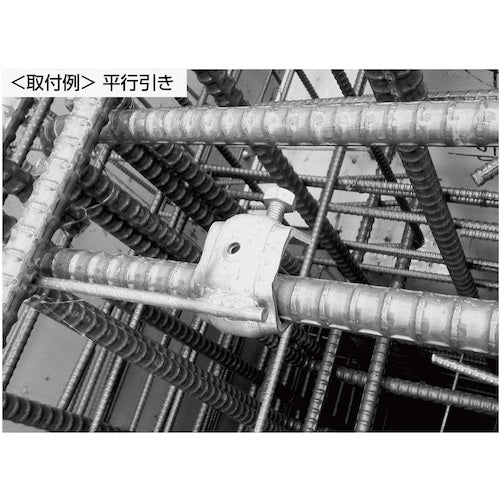

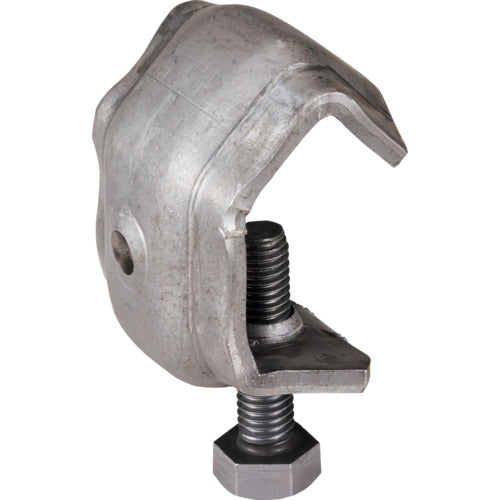

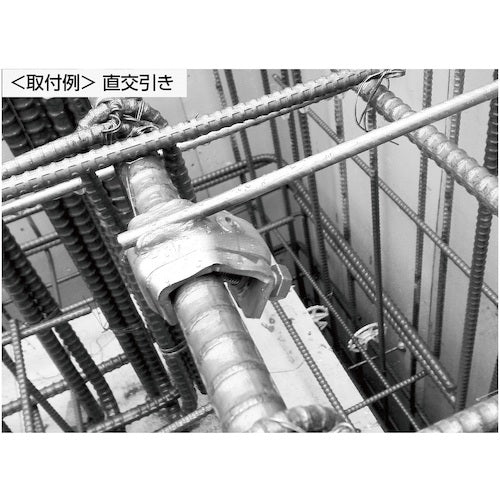

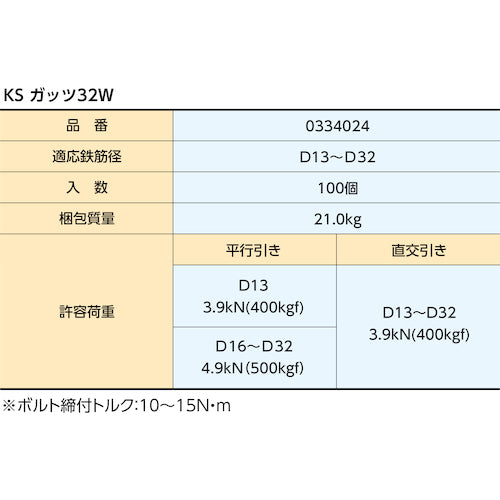

Catalog number: 0334024 Features: ●Can be attached without welding the separator to the rebar. ●Excellent strength due to the bag-drawing process. ●Can be attached to any position on the rebar because it is bolted. Specifications: ●Thread size: M10 ●Thread diameter (mm): 10 ●Length (mm): 40 ●Product name: KS Guts 32W ●Allowable load *When parallel pulling, D13 (kN/kgf): 3.9/400 ●Allowable load *When parallel pulling, D16-32 (kN/kgf): 4.9/500 ●Allowable load *When perpendicular pulling, D13-32 (kN/kgf): 3.9/400 ●Compatible rebar diameter: D13-D32 ●Bolt flat diameter: 17mm ●Bolt tightening torque: 10-15N・m Material/Finish: ●Iron Caution: ●Do not use in a direction that applies load to the push bolt when pulling perpendicularly. ●If you are going to weld the separator to the Guts main body after the fact, be sure to retighten the bolts. The initial torque will have decreased due to heat.
