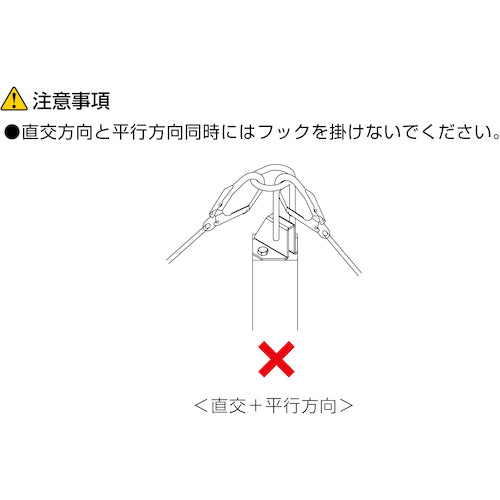

Catalog number: 1820355 Features: ●Uses a unique loop-shaped hook that absorbs shock. ●Can be firmly attached to steel frames with an octagonal disc spring that is resistant to shock and vibration. ●Inclined support column designed for walking on narrow beams with narrow steel flange width. ●Can be used in both perpendicular and parallel directions. Applications: ●To prevent falls during high-altitude work. Specifications: ●Maximum load weight (kg): 100 ●Width (mm): 145 ●Depth (mm): 142 ●Height (mm): 1080 ●Bottom mounting dimensions (mm): Depth 64 ●Clamp range (mm): 0-60 ●Certified by the Temporary Construction Industry Association ●Can be used for both parallel and parallel work Materials/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Caution: ●Tighten the bolts with a tightening torque of 60N・m. ●Do not hang hooks in the perpendicular and parallel directions at the same time. ●Use a certified φ16 synthetic fiber rope for the lifeline. ●One span should be used by one person only.
