KURITA Coil Hose CH1000 1 piece

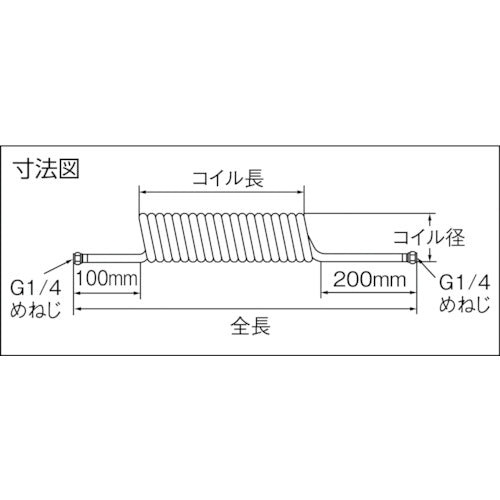

Catalog number: CH1000 Features: ● A lightweight hose with excellent elasticity and resilience. Applications: ● Connect to air tools such as air guns. Specifications: ● Coil diameter (mm): 45 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 9.0 ● Total length (mm): 1020 ● Coil length (mm): 720 ● Hose mounting port: G1/4 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Air ● Connection joint: Both ends with G1/4 female threads ● Fluid temperature (℃): -5 to 60℃ ● Normal pressure: 0.7MPa ● Connection partner: Both ends with G1/4 female threads Material/Finish: ● Body: Polyurethane (PU) ● Joint: Brass rod (C3604) chrome plated
