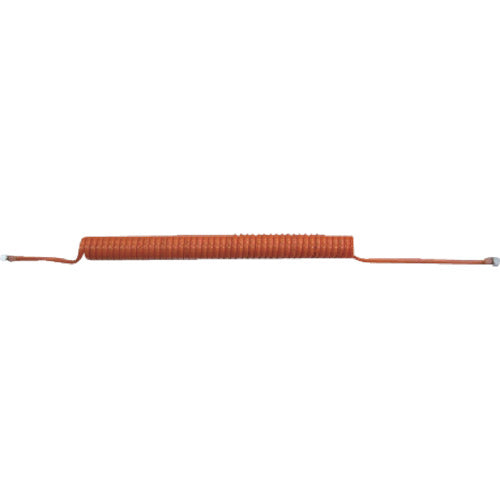

KURITA Coil Hose CH200 1 piece

Catalog number: CH200 Features: ● A lightweight hose with excellent elasticity and resilience. Applications: ● Used by connecting to air tools such as air guns. Specifications: ● Coil diameter (mm): 38 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 1.5 ● Total length (mm): 460 ● Coil length (mm): 160 ● Hose mounting port: G1/4 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Operating temperature range (℃): 0 to 50 ● Fluid used: Air ● Operating pressure (MPa): 0.7 ● Fluid temperature (℃): 0 to 50 ● Connection fitting: G1/4 female thread on both ends ● Hose inner diameter (mm): 5 ● Hose outer diameter (mm): 8 ● Fluid temperature: -5 to 60℃ ● Normal pressure: 0.7MPa ● Hose inner diameter x outer diameter: 5 x 8mm ● Connection partner: G1/4 female thread on both ends Material / Finish: ● Body: Polyurethane (PU) ● Fitting: Brass rod (C3604) chrome plated
