KURITA Coil Hose CH700 1 piece

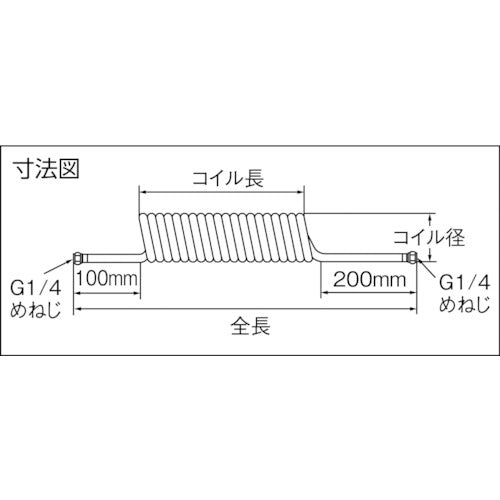

Catalog number: CH700 Features: ● A lightweight hose with excellent elasticity and resilience. Applications: ● Connect to air tools such as air guns. Specifications: ● Coil diameter (mm): 38 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 5.6 ● Total length (mm): 880 ● Coil length (mm): 580 ● Hose mounting port: G1/4 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Air ● Connection joint: G1/4 female thread on both ends ● Fluid temperature: -5 to 60°C ● Normal pressure: 0.7MPa ● Hose inner diameter x outer diameter: 5 x 8mm ● Connection partner: G1/4 female thread on both ends Material/Finish: ● Body: Polyurethane (PU) ● Joint: Brass rod (C3604) chrome plated
