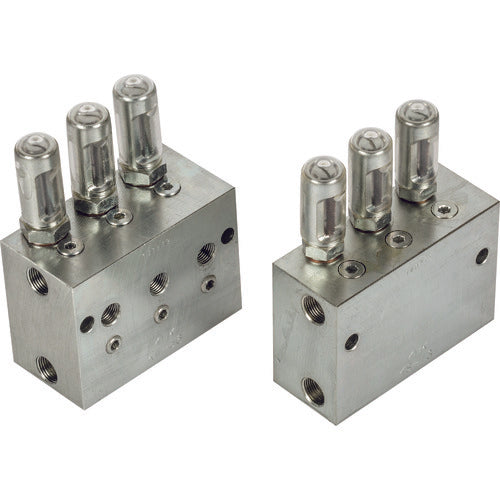

KWK Lubricator Dual Line Distribution Valve KS-34 1 unit

Catalogue number: KS-34 Features: ●Parallel operation distribution valve that draws in two pipes. ●Distributes the appropriate amount of lubricant sent from the pump to each bearing. ●The discharge volume can be adjusted individually using the adjustment screw. ●It is expandable because the number of greasing points can be freely increased or decreased on-site. ●Grease on both sides of the main piston is discharged from one point. Applications: ●Conveying equipment, construction machinery, etc. Specifications: ●Discharge volume (cm3/stroke): 0.2-1.2 ●Lubrication points: 4 ●Consistency: 0-1 ●Discharge pressure: 20.6MPa ●Mounting screw dimensions: M8 x 65 (included)
