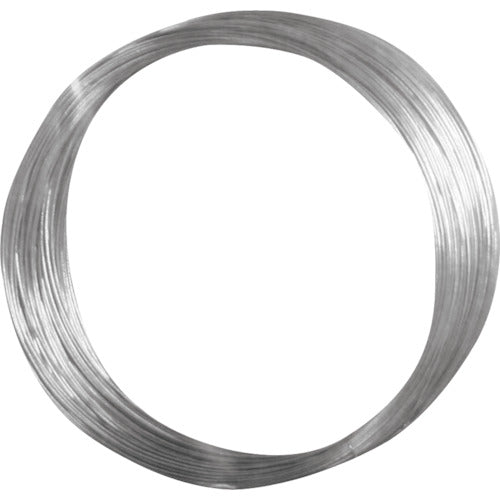

KYOWA Tin Plated Soft Copper Wire TCW 0.8MM 10M 1 Piece

Catalogue number: TCW 0.8MM 10M Features: ● The surface of the electrical soft copper wire is protected with tin plating to prevent oxidation and rusting. ● Excellent solderability. ● Resistant to oxidation, providing stable characteristics against aging. Applications: ● Circuit board wiring ● Jumper wires and other lead wires Specifications: ● Length (m): 10 ● Conductor outer diameter (Φmm): 0.8 ● Thickness tolerance (mm): ±0.02 ● Elongation rate (%): 20.0 or more ● Conductor nominal cross-sectional area (［［MM2］］): 0.5027 ● Conductor resistance (Ω/km) (20℃): 35.73 ● Electrical conductivity: 96.0% or more Material/Finish: ● Electrical soft copper wire (tin plated)
