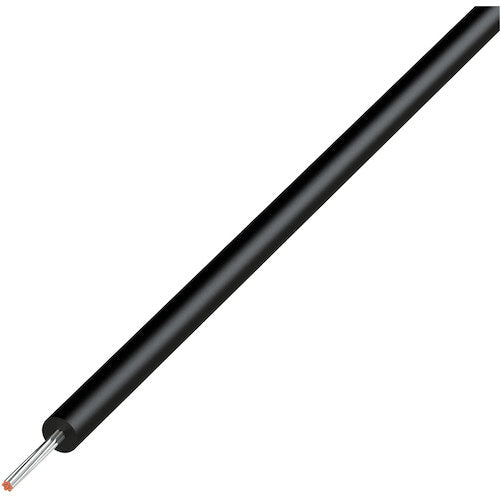

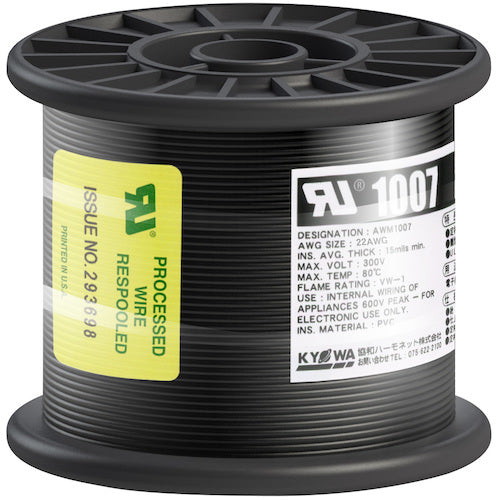

Catalog number: UL1007 AWG22 100M BK Features: ● Passes UL WL-1 and Electrical Appliance and Material Safety Act-F- flame retardancy tests. ● Compatible with UL and CSA. Specifications: ● Color: Black ● Number of cores: 1 ● Total length (m): 100 ● Rating: 300V ● External diameter (mm): approx. 1.6 ● Conductor (stranded wire) cross-sectional area: AWG22 ● Rated temperature (℃): 80 ● Allowable current (A): 8 ● Rated temperature 80℃
