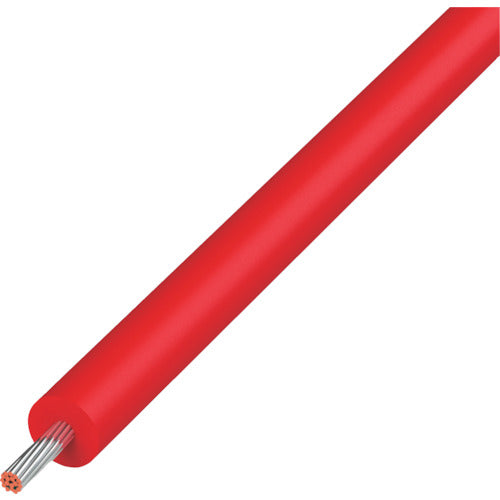

KYOWA UL heat-resistant vinyl insulated wire UL1015 AWG14 10M red UL1015 AWG14 10M RD 1 roll

Catalog number: UL1015 AWG14 10M RD Features: ● Passes UL WL-1 and Electrical Appliance and Material Safety Act-F- flame retardancy tests. ● Compatible with UL and CSA. Specifications: ● Color: Red ● Number of cores: 1 ● Total length (m): 10 ● Rating: 600V ● External dimensions (mm): approx. 3.5 ● Conductor (stranded wire) cross-sectional area: AWG14 ● Conductor outer diameter (mm): 1.92 ● Insulator outer diameter (approx. mm): 3.8 ● Insulator standard thickness (mm): 0.9 ● Allowable current (A): 32 ● Rated temperature 105°C ● Withstand voltage: 2000AC V/min.
