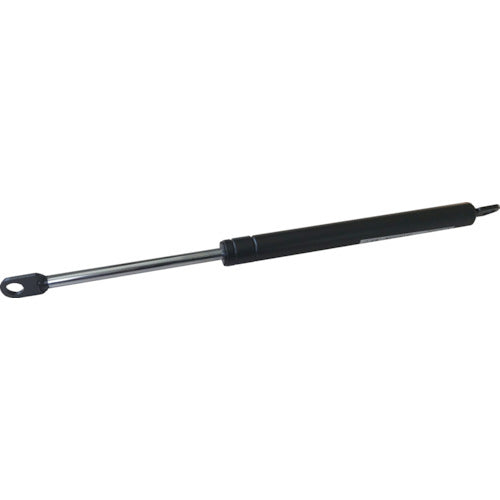

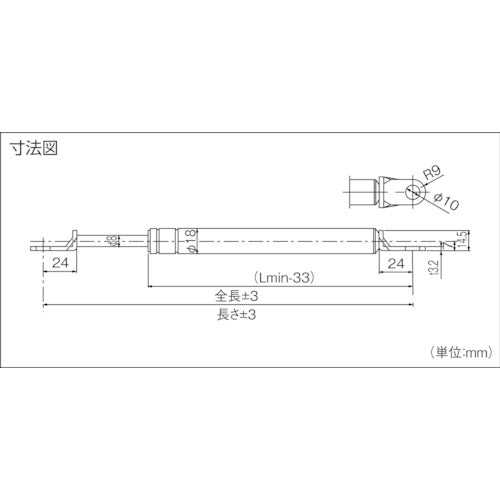

Catalog number: KHF50-30TR Features: ● RoHS10 compliant product. Applications: ● For opening and closing doors. Specifications: ● Overall length (mm): 246 ● Length (mm): 196 ● Stroke (mm): 50 ● Rebound force at full extension (N): 294 ● Rebound force at full contraction (N): 371 ● RoHS10 compliant product ● Rod diameter: Φ8mm ● Cylinder outer diameter: Φ18mm ● Gas spring type: Free piston type that can be installed in any direction Material/Finish: ● Rod: Steel
