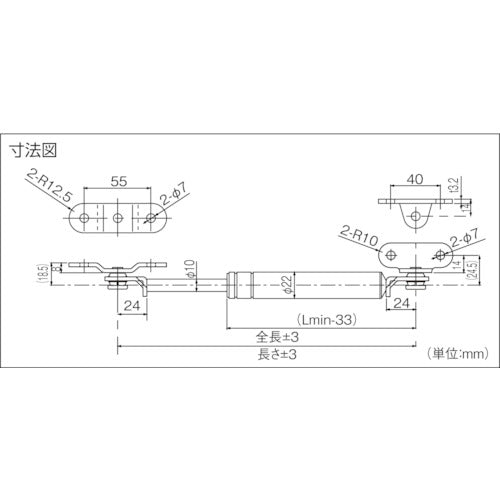

Catalogue number: KKF100-40TR Features: ● Comes with a mounting bracket, making it easy to install on the main unit. Applications: ● For opening and closing doors. Specifications: ● Overall length (mm): 386 ● Length (mm): 286 ● Stroke (mm): 100 ● Rebound force at full extension (N): 392 ● Rebound force at full contraction (N): 546 ● RoHS10 compliant product ● Rod diameter: Φ10mm ● Cylinder outer diameter: Φ22mm ● Operating temperature range: -20 to 80°C ● Gas spring type: Free piston type ● Mounting direction: 360° in all directions Material/Finish: ● Cylinder: Steel
