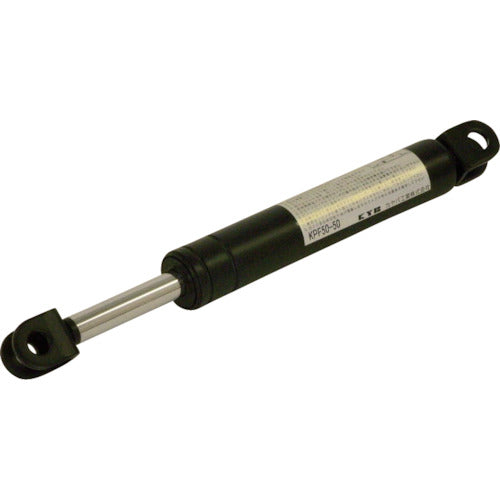

KYB Gas Spring Free Piston Type KPF70-60TR 1 Piece

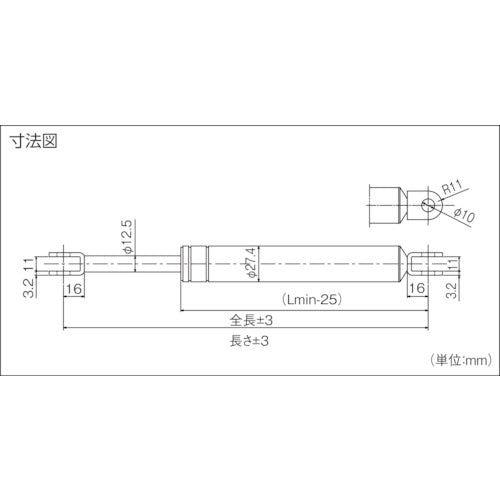

Catalog number: KPF70-60TR Features: ●Since the spring constant is lower than that of a coil spring, a nearly constant spring force can be generated over a long compression stroke, making it ideal for opening and closing doors. ●It has a damping effect as well as a spring action, allowing you to reliably control the opening and closing speed of doors. Applications: ●Opening and closing various lids such as copy machine lids, vending machine lids, and roof box lids, and assisting in raising and lowering hanging shelves. Specifications: ●Total length (mm): 316 ●Length (mm): 246 ●Stroke (mm): 70 ●Rebound force at full extension (N): 588 ●Rebound force at full contraction (N): 744 ●Rod diameter: Φ12.5mm ●Cylinder outer diameter: Φ27.4mm ●Operating temperature range: -20 to 80°C ●Gas spring type: Free piston type that can be installed in any direction ●Installation direction: 360° in all directions Material/Finish: ●Steel
