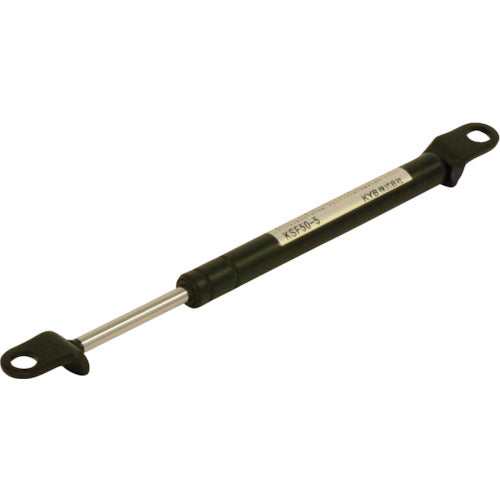

KYB Gas Spring Free Piston Type KSF50-5TR 1 Piece

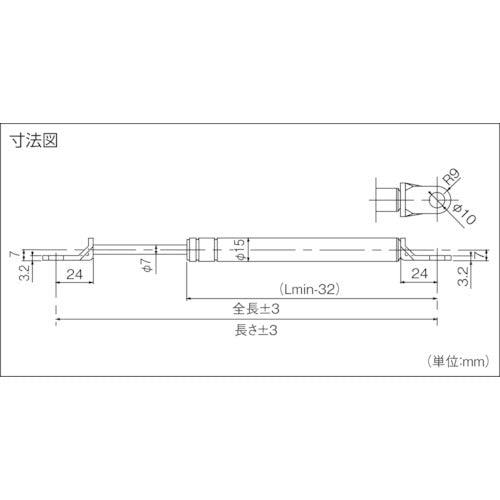

Catalog number: KSF50-5TR Features: ●Since the spring constant is lower than that of a coil spring, a nearly constant spring force can be generated over a long compression stroke, making it ideal for opening and closing doors. ●It has a damping effect as well as a spring action, allowing you to reliably control the opening and closing speed of doors. Applications: ●Opening and closing various lids such as copy machine lids, vending machine lids, and roof box lids, and assisting in raising and lowering hanging shelves. Specifications: ●Total length (mm): 246 ●Length (mm): 196 ●Stroke (mm): 50 ●Rebound force at full extension (N): 49 ●Rebound force at full contraction (N): 64 ●Rod diameter: Φ7mm ●Cylinder outer diameter: Φ15mm ●Operating temperature range: -20 to 80°C ●Gas spring type: Free piston type that can be installed in any direction ●Installation direction: 360° in all directions Material/Finish: ●Rod: Steel
