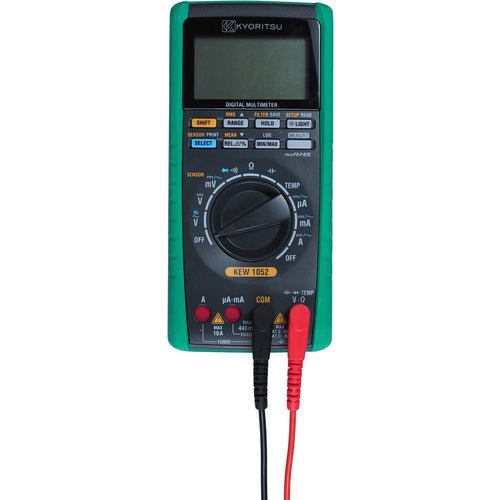

Catalog number: KEW1052 Features: ●Equipped with average value/effective value switching function. ●Equipped with low-pass filter. ●Equipped with user calibration function. ●Real-time monitoring is possible on a PC via USB connection. ●DC basic accuracy is 0.09%. Applications: ●For electrical and electronic circuit design, manufacturing, inspection, and service. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 1000 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 60M ● DC current (mA): 440 ● AC current (mA): 440 ● Minimum display (MΩ): 0.001 ● Detection method: Average value rectification (MEAN) / True effective value rectification (RMS) switching ● Power supply (V): 4 AA batteries (R6P) (included) ● Width (mm): 90 ● Depth (mm): 49 ● Height (mm): 192 ● Power supply: 4 AA batteries (R6P) (included) ● Maximum display (count): 6000 ● Auto power off: Approximately 20 minutes
