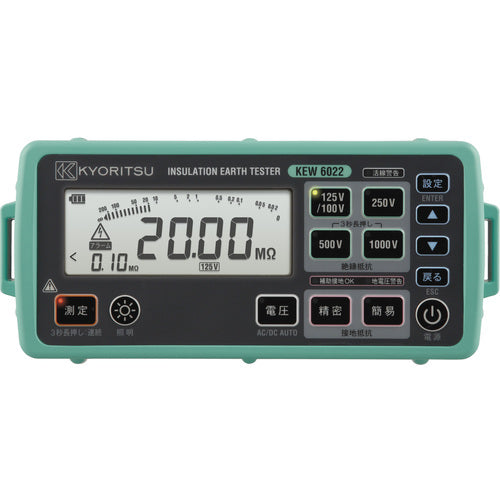

KYORITSU 6022LA Digital insulation and earth resistance tester (L-type probe model) KEW6022LA 1 unit

Catalog number: KEW6022LA Features: ● A composite measuring instrument with a compact body and easy to use. ● Small and lightweight design makes it convenient for long hours of work and carrying around. ● Fast response speed increases efficiency with speedy insulation measurement. ● Easy earth measurement with monitoring measurement using a remote switch. ● Automatically distinguishes and measures AC voltage (true RMS) and DC voltage. ● Various warning functions support safe and accurate measurement. (Live line planning, auxiliary earthing OK, etc.) ● Comes with an L-shaped probe with a remote switch that can be operated by hand. Applications: ● For general electrical work. Specifications: ● Ground resistance (Ω): 20/200/2000 ● Earth voltage (V): 600 ● Rated measurement voltage (V/MΩ): 100/125/250/500/1000 ● Minimum display (MΩ): 0.001 ● AC voltage (V): 600 ● DC voltage (V): 600 ● Insulation resistance value (MΩ): 2000 ● Type: With memory function ● Height (mm): 133 ● Depth (mm): 84 ● Width (mm): 184 ● Power supply (V): 6 AA batteries (R6P) (included) ● Dustproof and drip-proof structure: IEC60529 (IP54) ● With auto-discharge function Set contents/accessories: ● 7243A (L-shaped probe) ● 7244A (alligator clip cord set) ● 8017 (tip fitting, long) ● 8072 (tip fitting, standard) ● 9155 (Shoulder strap (with cord belt)) ●9156A (Soft case) ●9172 (Storage case) ●6 LR6 AA alkaline batteries ●Instruction manual
