Maezawa 90 degree single elbow 90KL65JC 90KL65JC 1 piece

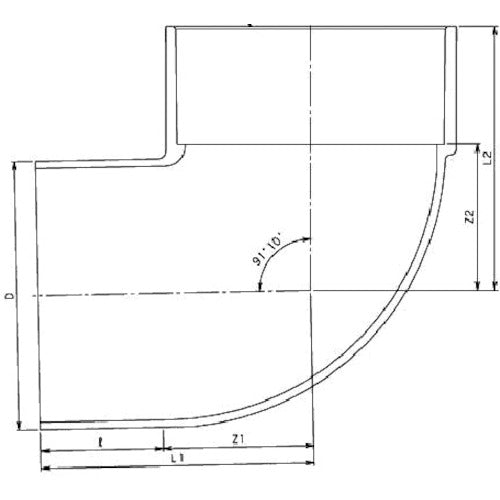

Catalog number: 90KL65JC Features: ●Special drainage joint useful for fine-tuning drainage piping. ●Single-sided plug type allows for shorter piping length. Applications: ●For drainage piping. Specifications: ●Nominal diameter of PVC pipe: 65 ●Dimensions (mm) L: 36 ●Maximum operating pressure (MPa): 0 ●Operating temperature range (℃): 0 to 45 ●Dimensions (mm) D: 76 ●Dimensions (mm) Z1: 45 ●Color: Gray ●Dimensions (mm) Z2: 41 ●Dimensions (mm) L2: 76 ●Dimensions (mm) L1: 81 ●Operating temperature range: 0 to 45℃ ●Maximum operating pressure: No pressure Material/Finish: ●Polyvinyl chloride (PVC)
