Maezawa VU different diameter elbow VUL75X40JC VUL75X40JC 1 piece

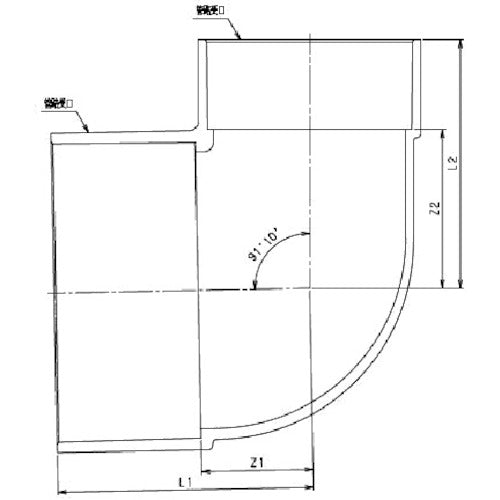

Catalog number: VUL75X40JC Features: ●Special drainage joints useful for fine-tuning drainage piping. Applications: ●For drainage piping. Specifications: ●PVC pipe nominal diameter: 75 x 40 ●Dimensions (mm) L: 67 ●Maximum operating pressure (MPa): 0 ●Operating temperature range (℃): 0 to 45 ●Color: Gray ●Dimensions (mm) Z1: 27 ●Dimensions (mm) Z2: 48 ●Dimensions (mm) L2: 70 ●Dimensions (mm) L1: 67 ●Operating temperature range: 0 to 45℃ ●Maximum operating pressure: No pressure Material/Finish: ●Rigid polyvinyl chloride (PVC)
