Maezawa VU different diameter elbow VUL75X65JC VUL75X65JC 1 piece

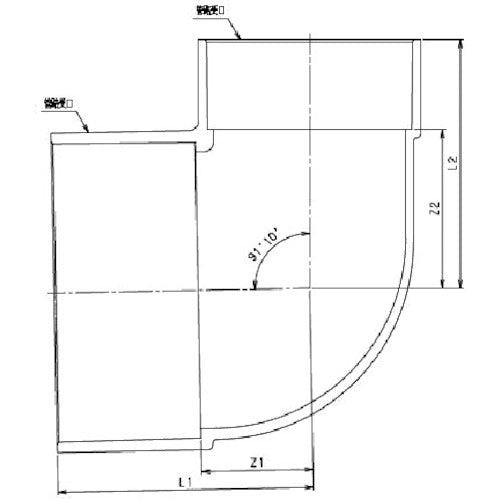

Catalog number: VUL75X65JC Features: ●Special drainage joints useful for fine-tuning drainage piping. Applications: ●For drainage piping. Specifications: ●Nominal diameter of PVC pipe: 75 x 65 ●Dimensions (mm) L: 81 ●Maximum operating pressure (MPa): 0 ●Operating temperature range (℃): 0 to 45 ●Color: Gray ●Dimensions (mm) L1: 81 ●Dimensions (mm) Z2: 48 ●Dimensions (mm) Z1: 41 ●Dimensions (mm) L2: 83 ●Operating temperature range: 0 to 45℃ ●Maximum operating pressure: No pressure Material/Finish: ●Rigid polyvinyl chloride (PVC)
