(株)MARUKI HARDWARECORPORATION
MALCON All-stainless steel framed weight caster 50mm flat type S-3750-50 1 pc
MALCON All-stainless steel framed weight caster 50mm flat type S-3750-50 1 pc
Regular price
¥11,814
Regular price
Sale price
¥11,814
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

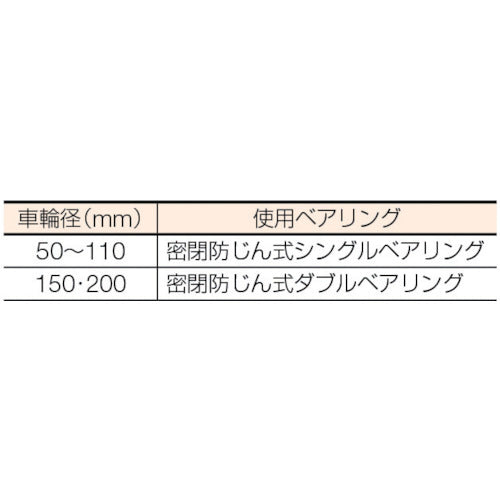

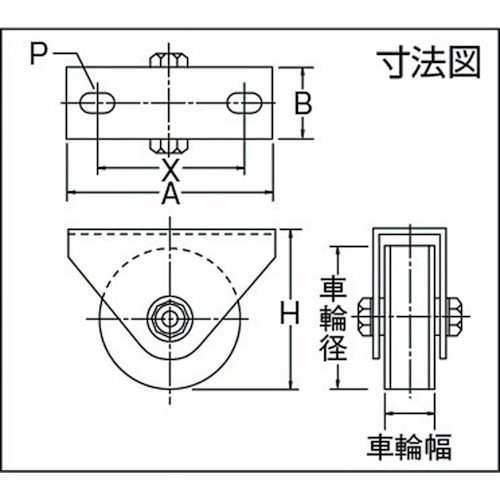

Catalog number: S-3750-50 Features: ●Uses sealed dustproof bearings (SUS440C). ●Uses rubber seals, making it excellent in water resistance. Applications: ●For floors. Specifications: ●Allowable load (daN): 196 ●Allowable load (kgf): 200 ●Wheel diameter (mm): 50 ●Wheel width (mm): 20 ●Mounting height H (mm): 62 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 75 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 1961 Material/Finish: ●Frame: Stainless steel (SUS304) ●Wheels: Stainless steel (SUS303) Note: ●Allowable load is a reference value in the vertical direction.
