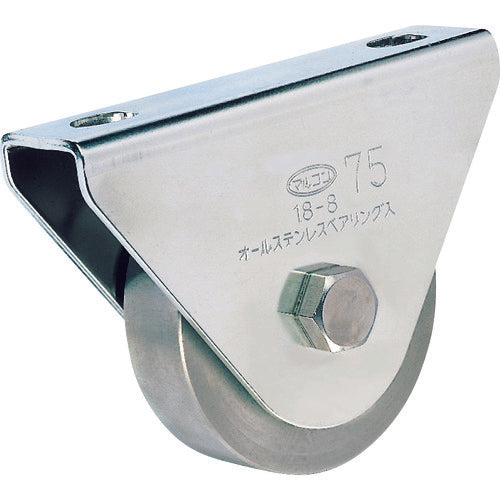

MALCON All-stainless steel framed weight caster, 90mm, flat type, S-3750-90, 1 piece

MALCON All-stainless steel framed weight caster, 90mm, flat type, S-3750-90, 1 piece

JAN：4531588004617 　
Architectural hardware Door roller Hardware and building materials Heavy duty door rollers (stainless steel rollers) Marcon Architectural Hardware
¥27,073
¥27,073
Sale Sold out
Shipping calculated at checkout.

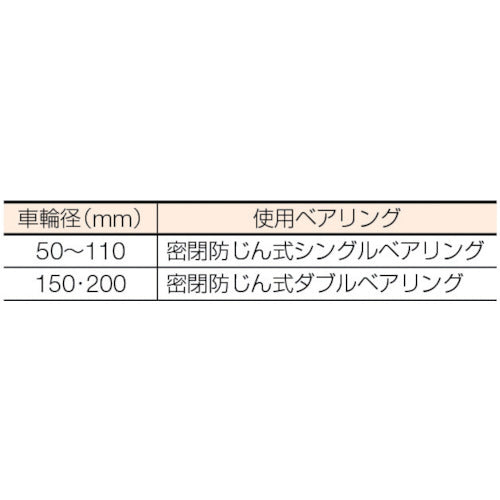

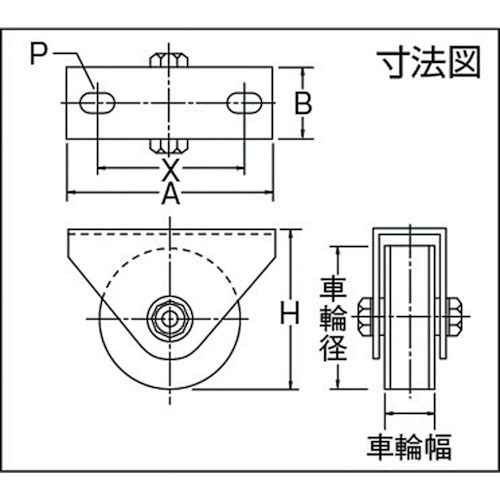

Catalog number: S-3750-90 Features: ●Uses sealed dustproof bearings (SUS440C). ●Uses rubber seals, making it excellent in water resistance. Applications: ●For floors. Specifications: ●Allowable load (daN): 588 ●Allowable load (kgf): 600 ●Wheel diameter (mm): 90 ●Wheel width (mm): 20 ●Mounting height H (mm): 95 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 95 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 5883 Material/Finish: ●Frame: Stainless steel (SUS304) ●Wheels: Stainless steel (SUS303) Note: ●Allowable load is a reference value in the vertical direction.
