MALCON All-stainless steel heavy duty car with frame, 60mm, V-type, S-3000-60, 1 piece

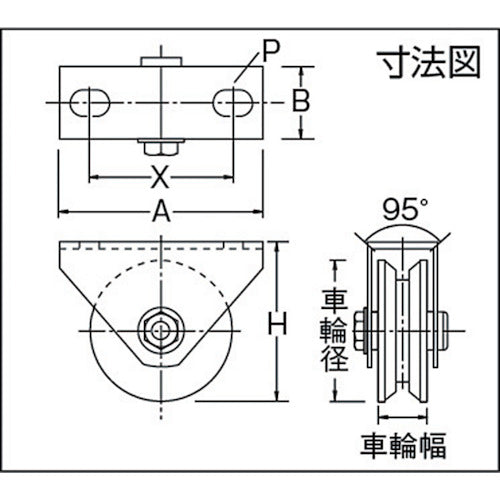

Catalog number: S-3000-60 Features: ●Uses sealed dustproof bearings (SUS440C). ●Uses rubber seals, making it excellent in water resistance. Applications: ●For angles and flat bars. Specifications: ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel diameter (mm): 60 ●Wheel width (mm): 20 ●Mounting height H (mm): 67 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 75 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 2451 ●50-110mm: Uses single bearing ●150mm: Uses sealed dustproof double bearing Material/Finish: ●Frame: Stainless steel (SUS304) ●Wheels: Stainless steel (SUS303) Note: ●Allowable load is a reference value in the vertical direction.
