MALCON Marcon framed trosher 75mm C-2150-75 1 piece

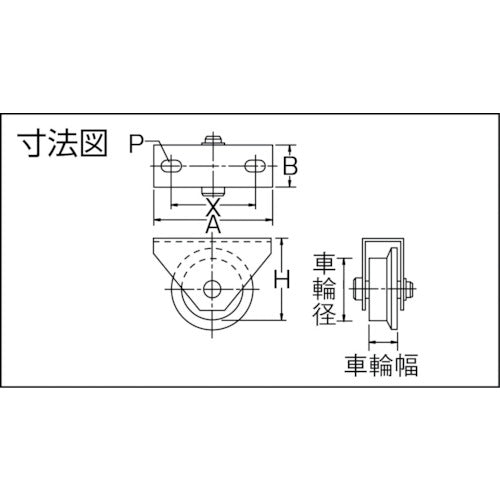

Catalogue number: C-2150-75 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For trolleys. Specifications: ● Allowable load (daN): 318 ● Allowable load (kgf): 325 ● Wheel diameter (mm): 75 ● Wheel width (mm): 32 ● Mounting height H (mm): 87.5 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 43 ● Mounting pitch X (mm): 94 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 2942 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
