MALCON Frame Weight Vehicle 105mm U-Type C-2600-105 1 pc

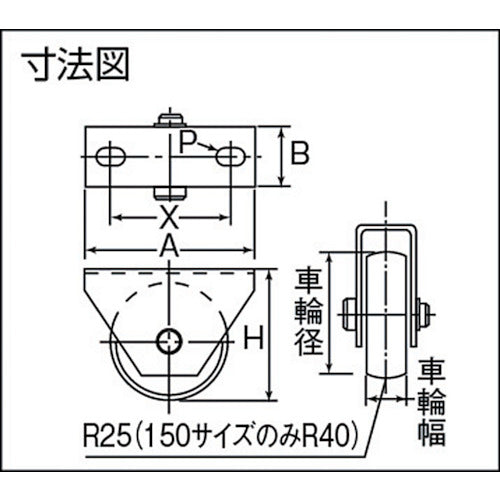

Catalog number: C-2600-105 Features: ●The wheel shape is rounded, and the contact area with the running surface is small, improving running performance. ●For floor use. Applications: ●For floor use. ●For sliding gates, entrances and exits of factories, schools, warehouses, etc. Specifications: ●Allowable load (daN): 294 ●Allowable load (kgf): 300 ●Wheel diameter (mm): 105 ●Wheel width (mm): 27 ●Mounting height H (mm): 120.0 ●Mounting seat A (mm): 140 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 110 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 2942 Materials/Finish: ●Frame: Steel ●Frame surface treatment: Chromate plating finish ●Wheels: Ductile cast iron (FCD-450) Note: ●Allowable load is a reference value in the vertical direction.
