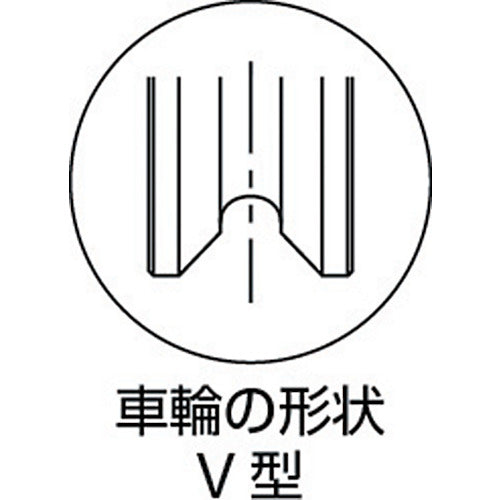

MALCON Frame Weight Vehicle 105mm V-Type C-2000-105 1 pc

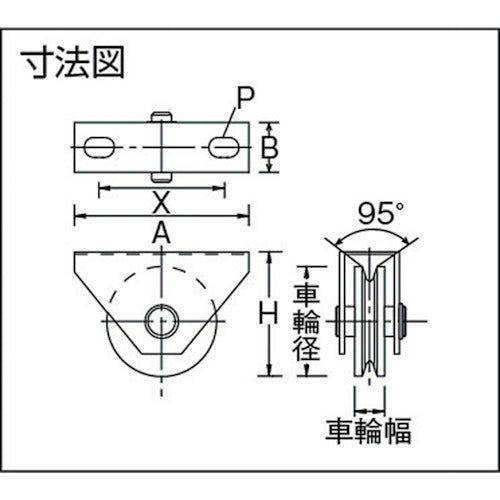

Catalog number: C-2000-105 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For angles and flat bars. Specifications: ● Allowable load (daN): 294 ● Allowable load (kgf): 300 ● Wheel diameter (mm): 105 ● Wheel width (mm): 27 ● Mounting height H (mm): 120.0 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 110 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 2942 ● Wheels only (C-2100) Material/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
