MALCON Frame Weight Vehicle 120mm Flat Type C-2400-120 1 pc

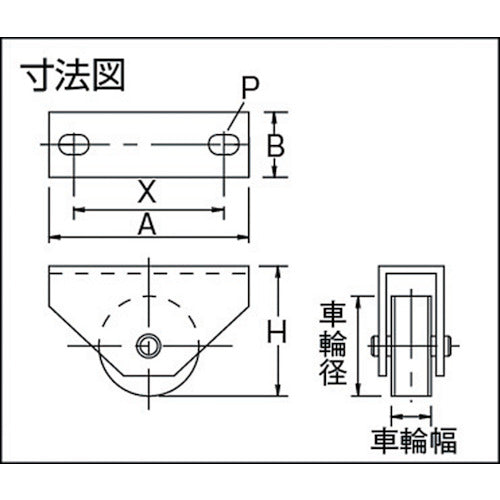

Catalog number: C-2400-120 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For floors. Specifications: ● Allowable load (daN): 382 ● Allowable load (kgf): 390 ● Wheel diameter (mm): 120 ● Wheel width (mm): 27 ● Mounting height H (mm): 127.5 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 38 ● Mounting pitch X (mm): 110 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 3824 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
