MALCON Frame Weight Vehicle 150mm C-Type C-2350-150 1 pc

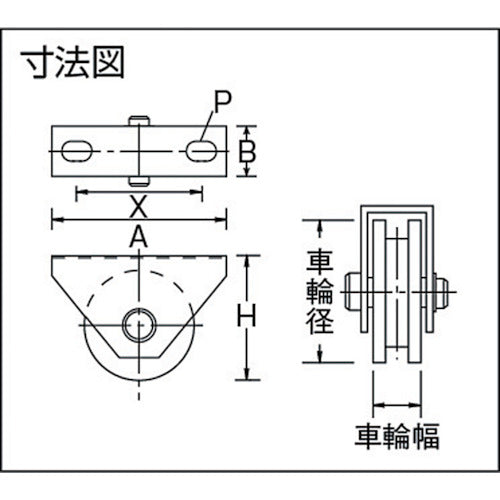

Catalog number: C-2350-150 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For flat bars. Specifications: ● Allowable load (daN): 980 ● Allowable load (kgf): 1000 ● Wheel diameter (mm): 150 ● Wheel width (mm): 43 ● Mounting height H (mm): 165.0 ● Mounting seat A (mm): 250 ● Mounting seat B (mm): 60 ● Mounting pitch X (mm): 185 ● Mounting hole diameter P (mm): 35 x 20 ● Allowable load (N): 9804 Material/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheel: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
