MALCON Frame Weight Vehicle 200mm Flat Type C-2400-200 1 pc

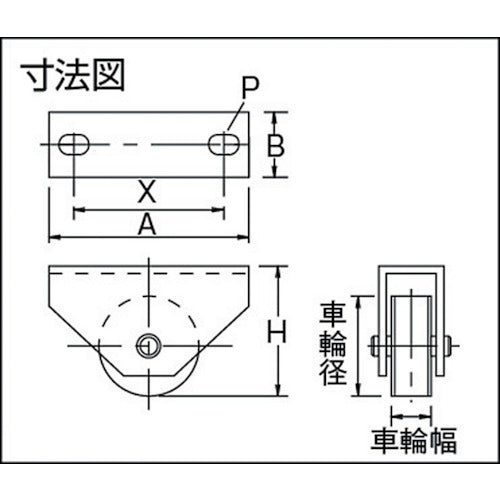

Catalog number: C-2400-200 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For floors. Specifications: ● Allowable load (daN): 1225 ● Allowable load (kgf): 1250 ● Wheel diameter (mm): 200 ● Wheel width (mm): 50 ● Mounting height H (mm): 215.0 ● Mounting seat A (mm): 290 ● Mounting seat B (mm): 70 ● Mounting pitch X (mm): 216 ● Mounting hole diameter P (mm): 35 x 20 ● Allowable load (N): 12255 Materials/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheels: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
