MALCON Frame Weight Vehicle 60mm C-Type C-2350-60 1 pc

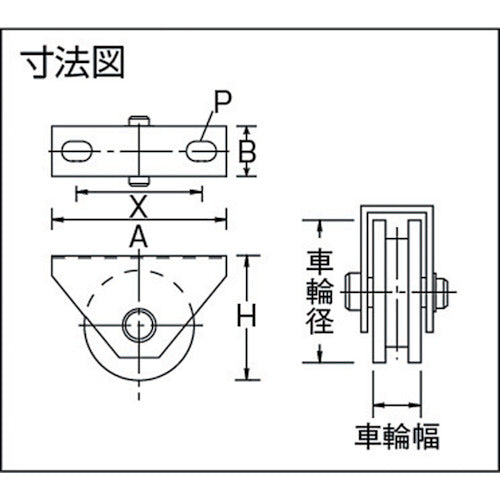

Catalog number: C-2350-60 Features: ● The wheels are made of ductile cast iron, which is stronger than ordinary cast iron. Applications: ● For flat bars. Specifications: ● Allowable load (daN): 122 ● Allowable load (kgf): 125 ● Wheel diameter (mm): 60 ● Wheel width (mm): 20 ● Mounting height H (mm): 69.0 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 32 ● Mounting pitch X (mm): 70 ● Mounting hole diameter P (mm): 15 x 11 ● Allowable load (N): 1226 Material/Finish: ● Frame: Steel ● Frame surface treatment: Chromate plating finish ● Wheel: Ductile cast iron (FCD-450) Note: ● The allowable load is a reference value in the vertical direction.
