MALCON Frame Weight Vehicle 90mm U-Type C-2600-90 1 pc

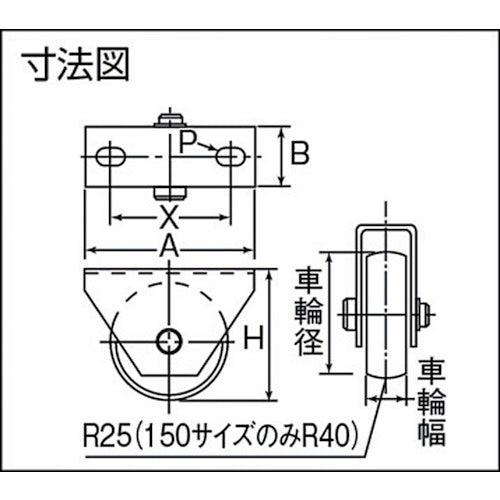

Catalog number: C-2600-90 Features: ●The wheel shape is rounded, and the contact area with the running surface is small, improving running performance. ●For floors. Applications: ●For floors. ●For sliding gates, entrances and exits of factories, schools, warehouses, etc. Specifications: ●Allowable load (daN): 220 ●Allowable load (kgf): 225 ●Wheel diameter (mm): 90 ●Wheel width (mm): 25 ●Mounting height H (mm): 97.0 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 90 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 2206 Material/Finish: ●Frame: Steel ●Frame surface treatment: Chromate plating finish ●Wheels: Ductile cast iron (FCD-450) Note: ●Allowable load is a reference value in the vertical direction.
