MAPAL Carbide Coated Drill MEGA-Stack-Drill-AF-C/A External Cooling X5D 3/18 inch SCD310-04837-2-2-135HA05-HC619 1 piece

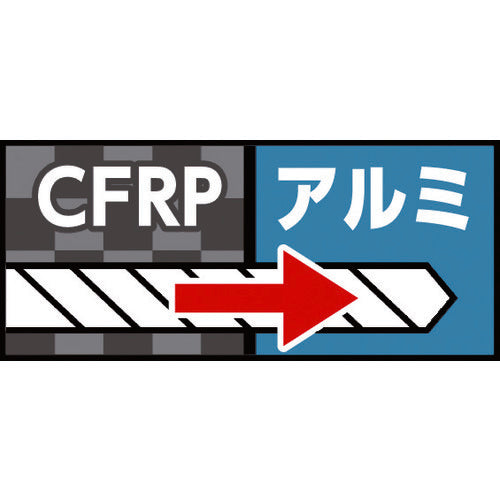

Catalog number: SCD310-04837-2-2-135HA05-HC619 Features: ●Designed to be ideal for drilling holes in stack materials. ●Model designed specifically for stack materials with CFRP inlet and aluminum outlet. ●Prevents burrs and delamination (interlayer peeling). ●Diamond coating with high wear resistance. Applications: ●Cutting material: Stack materials (inlet → CFRP/outlet → aluminum) only. Specifications: ●Blade diameter (mm): 4.837 ●Groove length (mm): 36 ●Total length (mm): 74 ●Shank diameter (mm): 6 ●Blade diameter (inch): 3/18 ●Surface treatment: HC619/Diamond coating ●Effective machining depth: 5D (blade diameter x 5 times) Material/Finish: ●Ultra-fine particle carbide alloy
