MAPAL Carbide Drill MEGA-Stack-Drill-AF-T/C Internal Cooling X5D 7/16 inch SCD341-11133-2-2-120HA05-HU621 1 piece

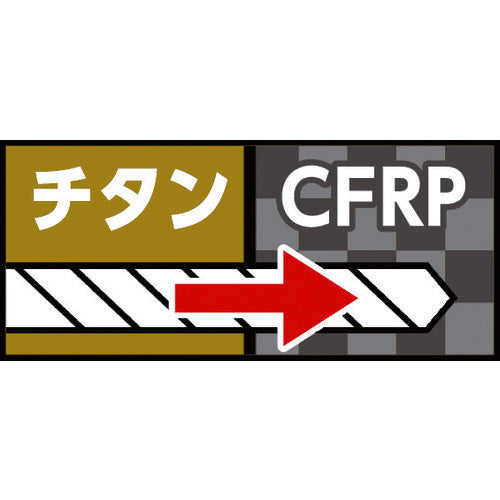

Catalog number: SCD341-11133-2-2-120HA05-HU621 Features: ●Designed to be ideal for drilling holes in stack materials. ●Model designed specifically for stack materials with titanium inlet and CFRP outlet. ●Prevents burrs and delamination (interlayer peeling). ●Non-coated for use with titanium materials. Applications: ●Cutting material: Stack materials (inlet → titanium/outlet → CFRP) only. Specifications: ●Blade diameter (mm): 11.133 ●Groove length (mm): 71 ●Total length (mm): 118 ●Shank diameter (mm): 12 ●Effective machining depth: 5D (blade diameter x 5 times) ●Blade diameter (inch): 7/16 ●Non-coated Material/Finish: ●Ultra-fine particle carbide alloy
