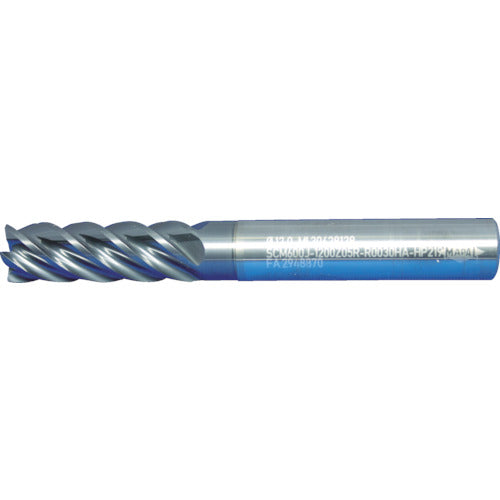

MAPAL Carbide Radius End Mill OptiMill-Titan-Trochoid 5-blade for titanium Blade diameter 10 mm Blade length 30 mm Total length 80 mm Shank diameter 10 mm SCM600J-1000Z05R-R0020HA-HP219 1 piece

Catalog number: SCM600J-1000Z05R-R0020HA-HP219 Features: ●Supports trochoidal machining up to 3xD. (For titanium) ●High speed/high feed machining is possible at 2 to 3 times faster than conventional models. ●Special chip breaker is used for optimal chip removal. Applications: ●Workpiece: titanium, titanium alloys. Specifications: ●Blade diameter (mm): 10 ●Corner radius (mm): 0.2 ●Blade length (mm): 30 ●Total length (mm): 80 ●Shank diameter (mm): 10 ●Surface treatment: HP219 coating ●Twist angle 41°/42° Material/Finish: ●Micro grain carbide Note: ●Special software is required for dynamic trochoidal machining.
